LINE FOLLOWING ROBOT

HOW TO MAKE LINE FOLLOWER ROBOT

OR

DIY : LINE FOLLOWER ROBOT

How To Make Arduino Line Follower Robot?

A Line Follower Robot, as the name suggests, is an automated guided vehicle, which follow a visual line embedded on the floor or ceiling. Usually, the visual line is the path in which the line follower robot goes and it will be a black line on a white surface but the other way (white line on a black surface) is also possible. Certain advanced Line Follower Robots use invisible magnetic field as their paths.

Large line follower robots are usually used in industries for assisting the automated production process. They are also used in military applications, human assistance purpose, delivery services etc.

Line follower Robot is one of the first robots that beginners and students would get their first robotic experience with. In this project, we have designed a simple Line Follower Robot using Arduino and some other components.

video link - https://youtu.be/p091e3vGp9k

Circuit Diagram

Circuit diagram link - (Click here)

Components Required

• Arduino NANO (or Arduino UNO)
• L298N Motor Driver
• BO Motors x 4
• Robot Chassis (or wood, acrylic sheet etc)
• IR Sensor Module x 2
• Black Tape (Electrical Insulation Tape)
• Connecting Wires
• 7.4v - 12v battery
• Tyres x 4

Note: We have used a prebuilt IR Sensor Module that consists of an IR LED and a Photo Diode. If you do not have this, we have explained how to build one yourself.

Block Diagram of the Project

The line follower robot built in this project is divided in to 4 blocks. The following image shows the block diagram for line follower robot.

Block Diagram Description

Sensors (IR Sensor): We have used IR Sensor Module as the line detecting sensor for the project. It consists of an IR LED and a Photo diode and some other components like comparator, LED etc.

As mentioned earlier, we have used a pre – assembled IR Sensor. In case you do not have one, you can make your own sensor using the following circuit.

The working of the IR Sensor and its scope in this project will be explained in the actual working of the Line Follower Robot.

Controller (Arduino NANO): Arduino NANO is the main controller in the project. The data from the sensors (IR Sensors) will be given to Arduino and it gives corresponding signals to the Motor Driver.

Motor Driver (L298N): L298N Motor Driver is used in this project to drive the motors of the robot. It receives signals from Arduino based on the information from the IR Sensors.

Note: The battery/power supply to the motors must be given from the motor driver. Hence, choose the appropriate battery/power supply which is sufficient for all the components including the motors.

Motors (BO Motors): We have used four BO motors in the line follower robot. These motors provide more torque speed normal motors and can be used for precised result as well.

Working of Arduino Line Follower Robot

In this project, we have designed an Arduino based Line Follower Robot. The working of the project is pretty simple: detect the black line on the surface and move along that line. The detailed working is explained here.

As mentioned in the block diagram, we need sensors to detect the line. For line detection logic, we used two IR Sensors, which consists of IR LED and Photodiode. They are placed in a reflective way i.e. side – by – side so that whenever they come in to proximity of a reflective surface, the light emitted by IR LED will be detected by Photo diode.

The following image shows the working of a typical IR Sensor (IR LED – Photodiode pair) in front of a light coloured surface and a black surface. As the reflectance of the light coloured surface is high, the infrared light emitted by IR LED will be maximum reflected and will be detected by the Photodiode.

In case of black surface, which has a low reflectance, the light gets completely absorbed by the black surface and doesn’t reach the photodiode.

Using the same principle, we will setup the IR Sensors on the Line Follower Robot such that the two IR Sensors are on the either side of the black line on the floor. The setup is shown below.

When the robot moves forward, both the sensors wait for the line to be detected. For example, if the IR Sensor 1 in the above image detects the black line, it means that there is a right curve (or turn) ahead.

Arduino NANO detects this change and sends signal to motor driver accordingly. In order to turn right, the motors on the right side of the robot runs backward, while the motor on the left side is run forward.

Similarly, when the IR Sensor 2 detects the black line first, it means that there is a left curve ahead and the robot has to turn left. For the robot to turn left, the motors on the left side of the robot runs backward and the motor on the right side runs forward.

Arduino NANO continuously monitors the data from both the sensors and turns the robot as per the line detected by them.

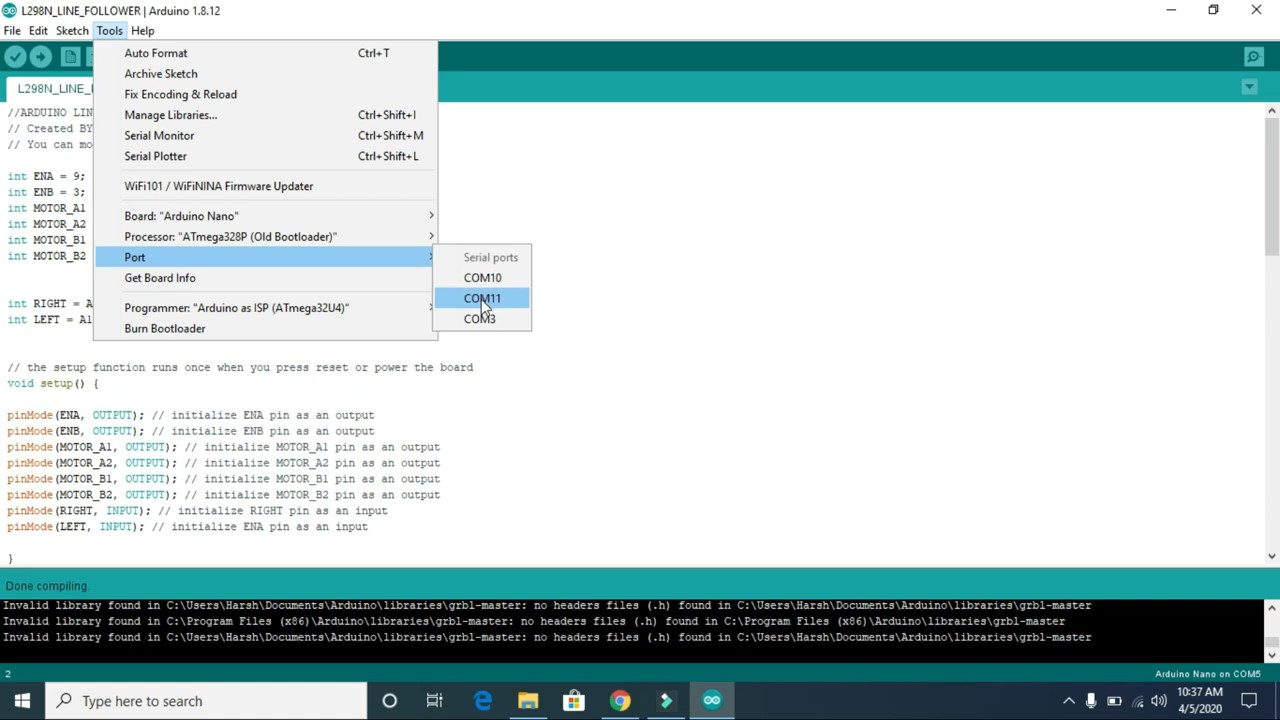

Code

Code link :- (Click here)

Note:

• In order to increase the efficiency of black line detection, number of sensors can be increased. An array of sensors will be more accurate than just two sensors.
• In this project (where two sensors are used), the positioning of the sensors is very important. The width of the black line plays a major role in the placement of the sensors.
• The sensor to detect the line can also be constructed using an LED and LDR pair.

Applications of Line Follower Robot

• Line follower Robots are commonly used for automation process in industries, military applications and consumer applications.
• They are very useful as they can work without any supervision i.e. they work as automatic guided vehicles.
• With additional features like obstacle avoidance and other security measures, line follower robots can be used in driver less cars.
